Disposal of electronic waste

Waste of Electrical and Electronic Equipment (WEEE) poses a risk to human health and the environment when not disposed of properly. This product should not be discarded as unsorted waste but must be sent to separate collection facilities for recovery and recycling. More information is available from the relevant local authority.​

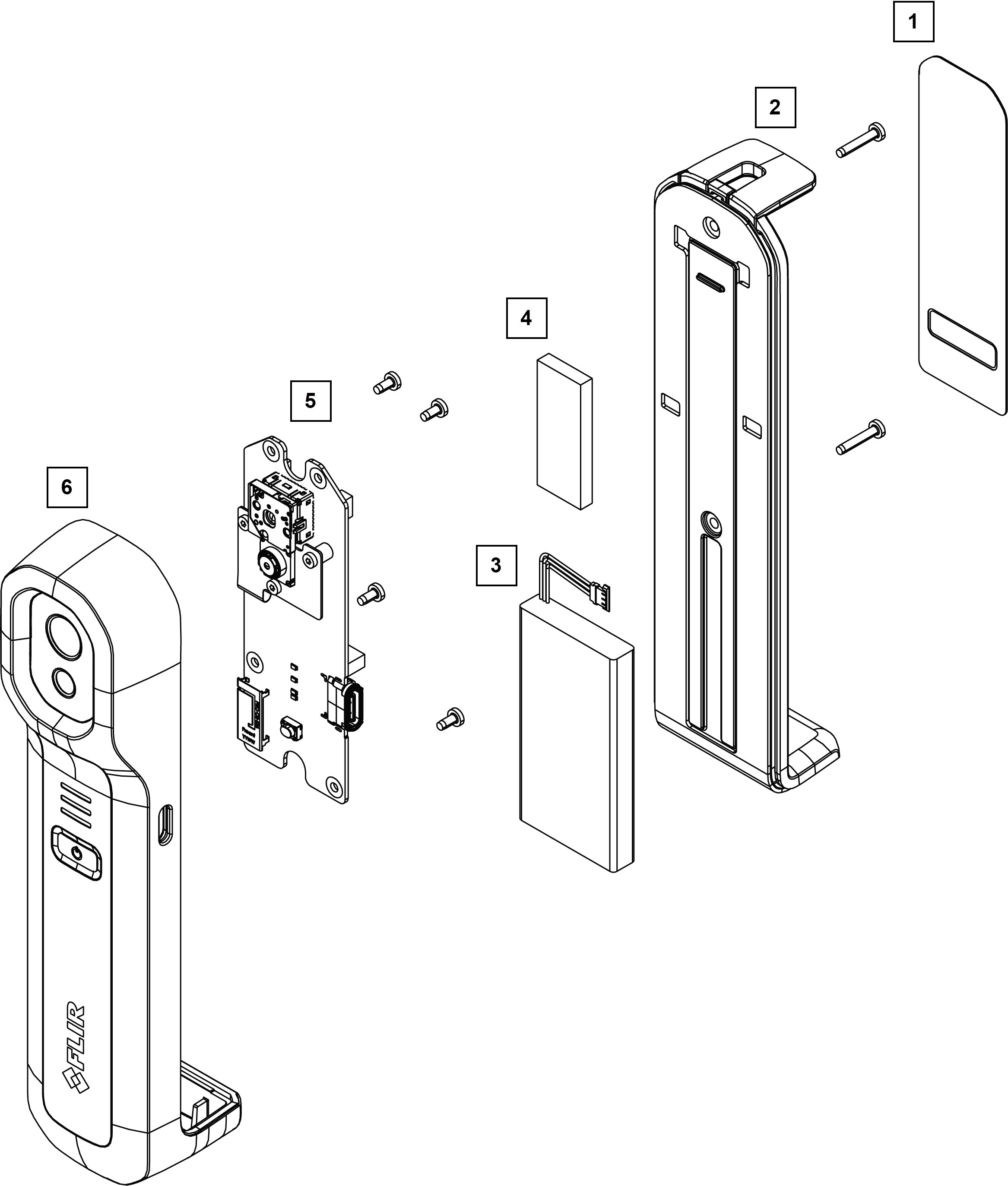

Disassembly for recycling

Before disposal of the camera, disassemble the camera and discard the parts separately.

  1. Use a thin knife to lift a corner of the product label. Remove the product label.

  2. Use a Torx T6 screwdriver and remove the two screws from the back cover. Remove the back cover.

  3. Disconnect the battery connector by lifting the side knob of the connector. Pull out the battery.

  4. Remove the gap pad.

  5. Use a Torx T6 screwdriver and remove the four screws that hold the electronics assembly. Lift out the electronics assembly.

  1. Product label: Plastic (PET)

  2. Back cover: Metal (Zinc, Steel), Silicone rubber, PU foam

  3. Battery: Li-ion

  4. Gap pad: HC5000 (silicone, fiberglass)

  5. Electronics assembly: circuit board, components

  6. Camera body: Plastic (PC-ABS), Glass (BK7, Si), Metal (Aluminum), PU foam
