T810684 - AA - en-US

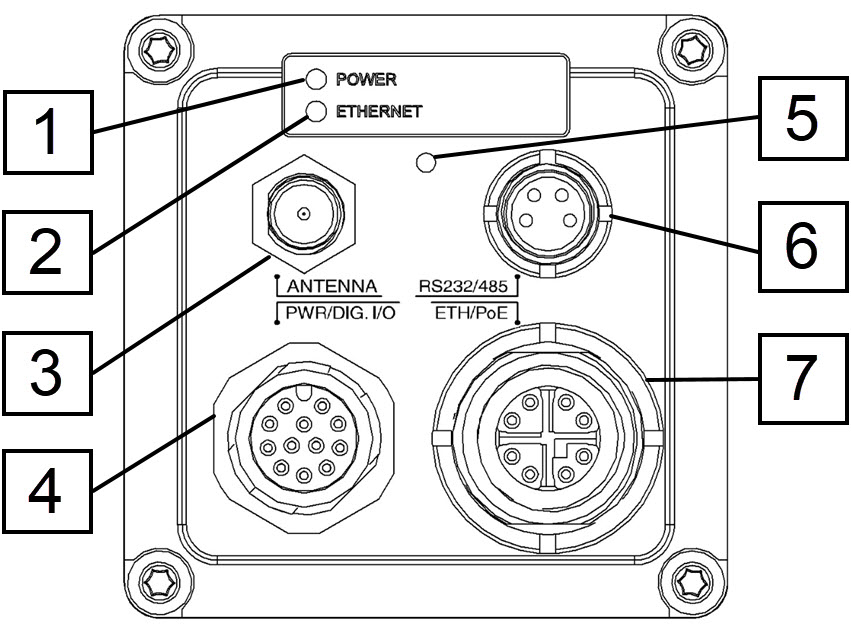

Figure 1. View from the rear.

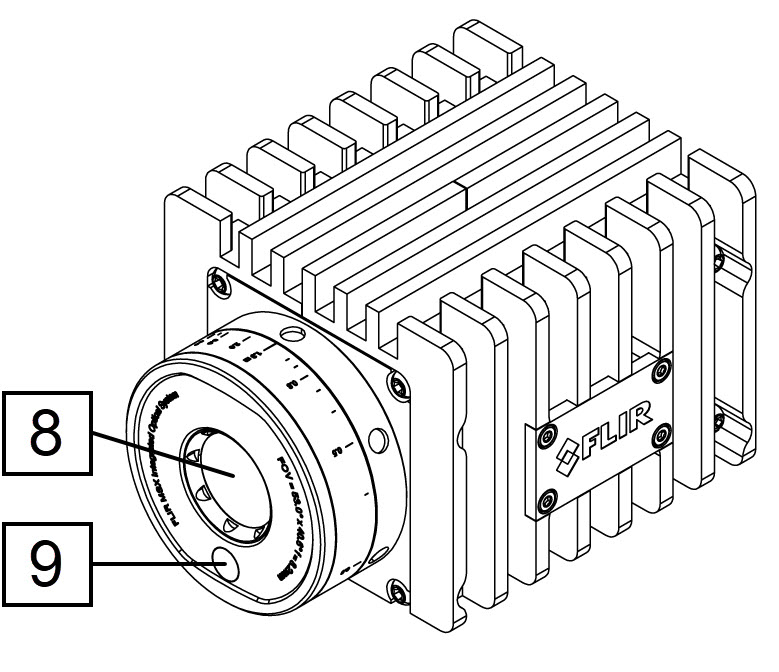

Figure 2. View from the front.
Power/error indicator LED (green/red).
Ethernet communication indicator LED (green).
Antenna.
Power-I/O connector, A-coded.
Factory reset button.
RS232/485 connector, A-coded.
Ethernet/PoE connector, X-coded.
Infrared sensor.
Visual camera.
