User interface

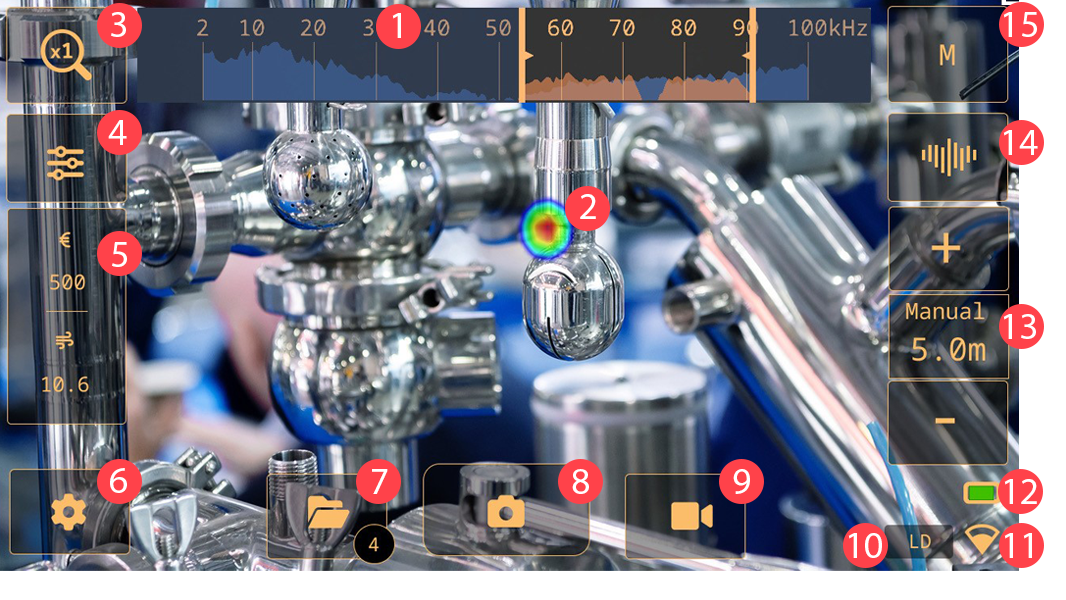

General

  1. Frequency view

  2. Acoustic image

  3. Zoom button

  4. Quick menu button

  5. Analysis results (mode specific)

  6. Settings button

  7. Archive button

  8. Snapshot button

  9. Record button

  10. Leak detection

  11. Wi-Fi indicator

  12. Battery indicator

  13. Distance settings

  14. Frequency view toggle

  15. Filter button

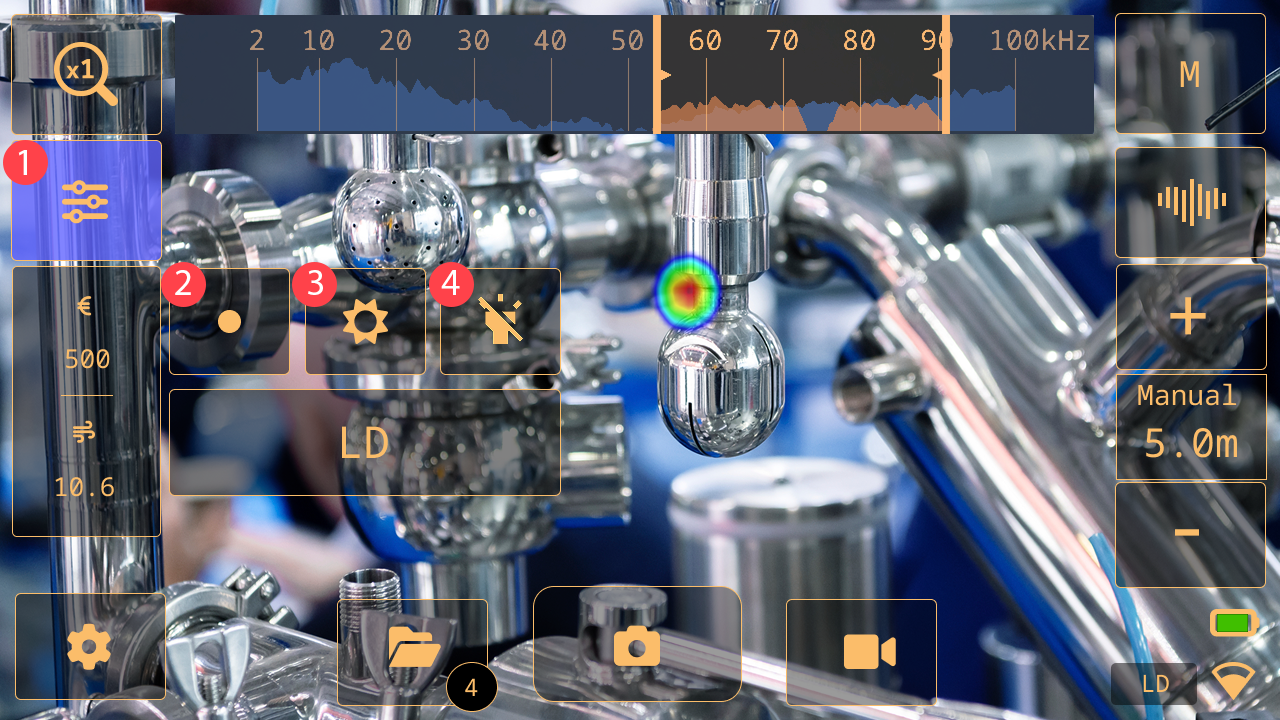

Quick menu

  1. Quick menu button: Tap to open/close the Quick menu

  2. Source button: Tap to switch between the Single-source and Multi-source modes. See section Single-source and Multi-source modes.

  3. Brightness button: Tap to switch the brightness on and off.

  4. Lamp button: Tap to switch the lamp on and off.

Archive indicators

The number of files in the archive is displayed within the circled area on the Archive button.

An animated upload progress spinner in the circled area indicates that files are being uploaded to the FLIR Acoustic Camera Viewer cloud service. Snapshots are automatically removed from the camera, after they have been uploaded to the FLIR Acoustic Camera Viewer cloud service or exported to a USB memory stick.

Wi-Fi indicator

Note

Only applicable on camera models with Wi-Fi.

Excellent Wi-Fi connection strength.

Good Wi-Fi connection strength.

Satisfactory Wi-Fi connection strength.

Poor Wi-Fi connection strength.

No Wi-Fi connection.

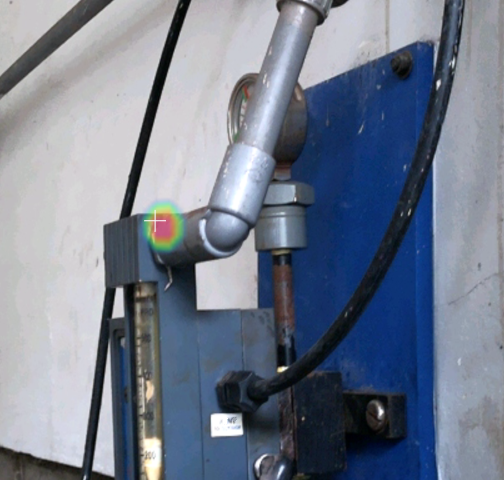

Acoustic image

The acoustic image shows the location of a sound source, using colors ranging from red in the center to blue in the periphery.

The camera displays one or multiple sound sources, depending on the selected mode: Single-source or Multi-source. For more information, see section Single-source and Multi-source modes.
