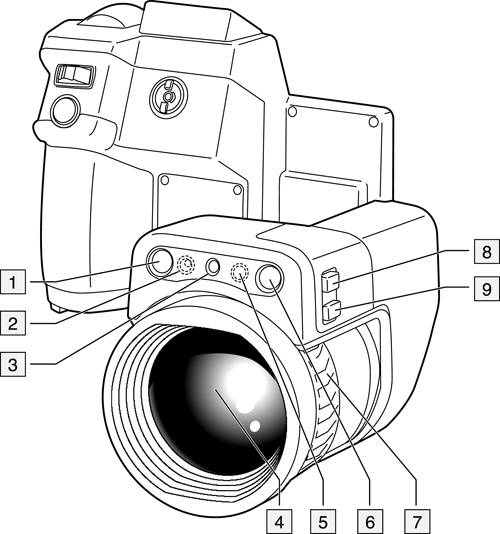

Camera overview

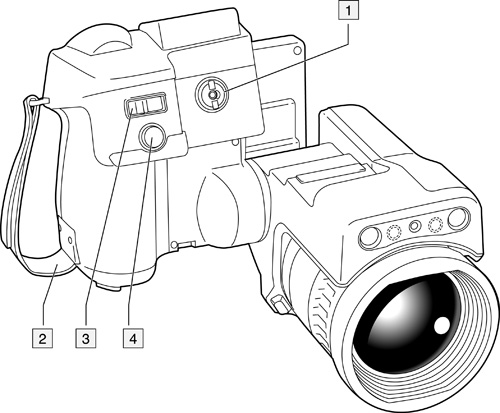

View from the right

  1. Knob to change the dioptric correction for the viewfinder.1

  2. Hand strap.

  3. Digital zoom button.

  4. Save button (push fully down).

    Note

    The infrared camera can be configured to autofocus when you push the Save button half-way down. To enable the autofocus function of the Save button, select (Settings) > Save options & storage > Save button half-press = Autofocus.

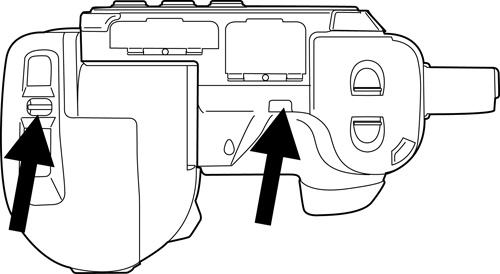

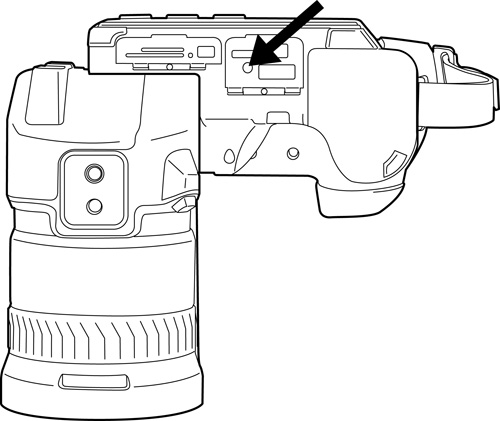

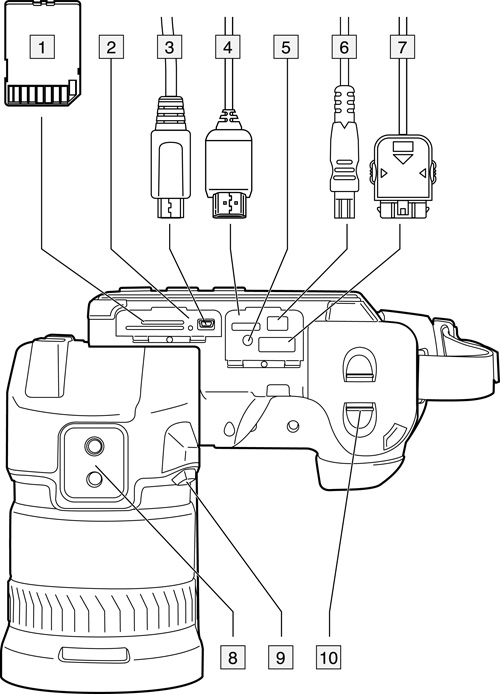

View from the bottom

  1. Memory card.

    Note

    Empty or use a memory card that has not previously been used in another version or type of camera. The cameras may organize files differently on the memory card. There is therefore a risk of losing data if the same memory card is used in different versions or types of cameras.

  2. LED indicator showing that the memory card is busy.

    Note

    • Do not eject the memory card when this LED is flashing.

    • Do not connect the camera to a computer when this LED is flashing.

  3. USB Micro B cable (to connect the camera to a computer).

  4. HDMI cable (for digital video output).

  5. Battery condition LED indicator.

  6. Power supply cable (to power the camera and charge the battery).

  7. High-speed interface cable.

  8. Tripod mount.

  9. Button to release the lens.

  10. Latch to release the battery.

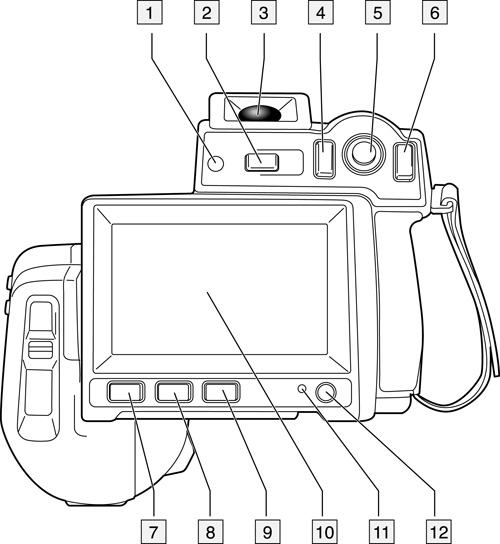

View from the rear

  1. Sensor that adjusts the touch-screen LCD intensity automatically.

  2. button.

    Function:

    • Push to switch between touch-screen LCD mode and viewfinder mode.

      Note

      This item is dependent on the camera model.

  3. Viewfinder.

    Note

    This item is dependent on the camera model.

  4. Programmable button .

  5. Joystick with push-button functionality.

    Function:

    • Move the joystick left/right or up/down to navigate in menus, submenus, and dialog boxes, and to change values in dialog boxes.

    • Push the joystick to confirm changes and settings in menus and dialog boxes.

  6. Back button .

    Function:

    • Push to leave dialog boxes and to go back into the menu system.

  7. Camera lamp button .

    Function:

    • Push to turn on or off the camera lamp.

      Note

      The camera lamp must be enabled. Select (Settings) > Device settings > Lamp & laser > Enable lamp & laser.

  8. button.

    Function:

    • Push to switch between automatic and manual image adjustment mode.

  9. Image archive button .

    Function:

    • Push to open the image archive.

    • Push and hold for more than 2 seconds to perform a manual non-uniformity correction (NUC).

  10. Touch-screen LCD.

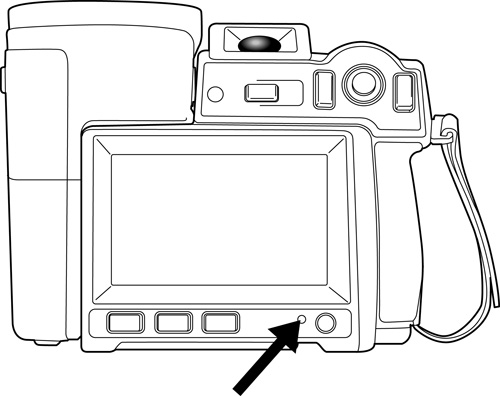

  11. Power indicator.

  12. On/off button .

    Function:

    • Push and release to turn on the camera.

    • Push and hold for more than 0.5 second to turn off the camera.

Laser pointer

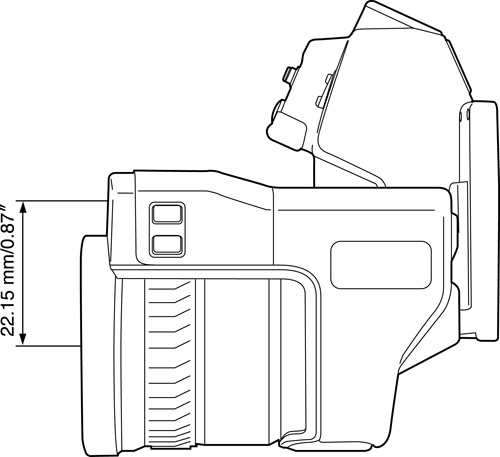

This figure shows the difference in position between the laser pointer and the optical center of the infrared lens.

WARNING

Do not look directly into the laser beam. The laser beam can cause eye irritation.

Note

  • The symbol is displayed on the screen when the laser pointer is on.

  • The laser pointer is enabled by a setting. Select (Settings) > Device settings > Lamp & laser > Enable lamp & laser.

  • The laser pointer may not be enabled in all markets.

Laser rules and regulations

Wavelength: 635 nm. Maximum output power: 1 mW.

This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Screen elements

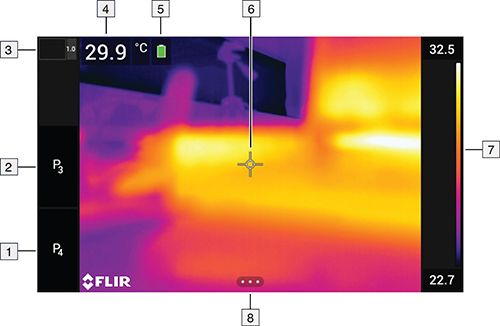

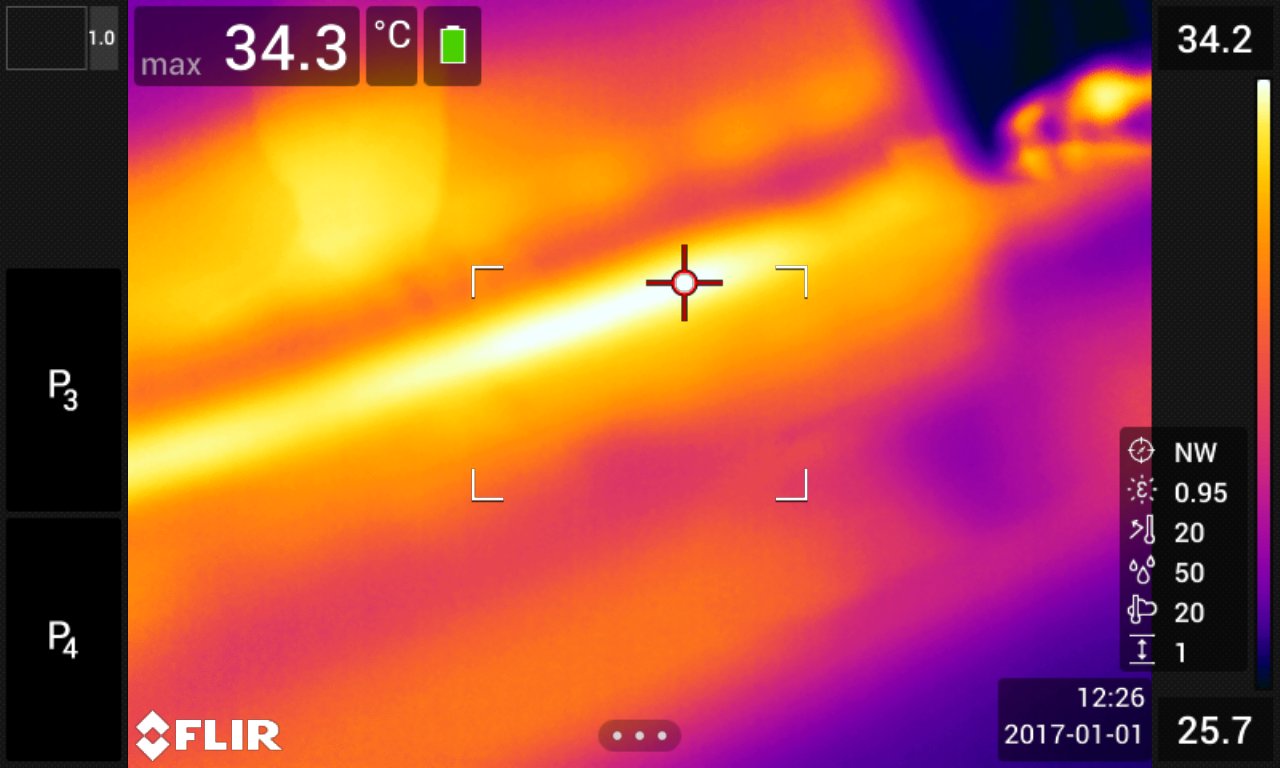

General

  1. Programmable button P4.

  2. Programmable button P3.

  3. Digital zoom factor.

  4. Result table.

  5. Status icons.

  6. Measurement tool (e.g., spotmeter).

  7. Temperature scale.

  8. Menu system button.

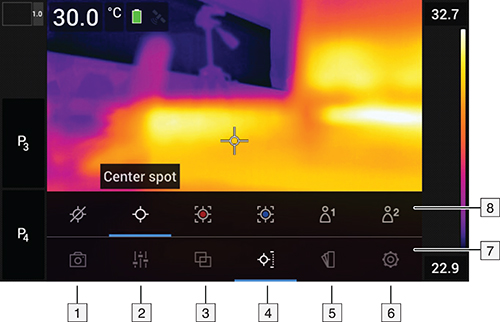

Menu system

To display the menu system, push the joystick or tap the menu system button .

  1. Recording mode button.

  2. Measurement parameters button.

  3. Image mode button.

  4. Measurement button.

  5. Color button.

  6. Settings button.

  7. Main menu.

  8. Submenu.

Status icons and indicators

Battery status indicator.

  • When the battery status is 20–100%, the indicator is white.

  • When the battery is charging, the indicator is green.

  • When the battery status is below 20%, the indicator is red.

The remaining storage capacity is below 100 MB.

A Bluetooth headset is connected.

External infrared window compensation is enabled.

The laser is on.

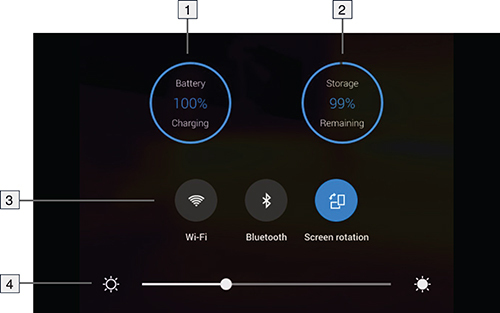

Swipe-down menu

To open the swipe-down menu, place your finger at the top of the screen and swipe down.

  1. Battery status indicator.

  2. Memory card storage status indicator.

    • Wi-Fi button: Touch to enable/disable Wi-Fi. See also section Configuring Wi-Fi.

    • Bluetooth button: Touch to enable/disable Bluetooth. See also section Pairing Bluetooth devices.

    • Screen rotation button: Touch to enable/disable screen rotation.

  4. Screen brightness slider: Used to control the brightness of the screen.

Image overlay information

The image information consists of items such as the date, emissivity, and atmospheric temperature. All image information is saved in the image file and can be viewed in the image archive. You can also choose to display selected items as image overlay information. All image overlay information displayed on the live image will also be displayed on saved images. For more information, see sections section Device settings and Hiding all overlay.

Navigating the menu system

You can navigate the menu system in two ways:

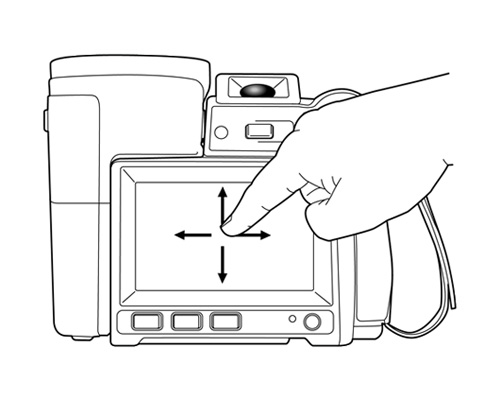

  • Using your finger or a stylus pen specially designed for capacitive touch usage.

  • Using the joystick and the back button.

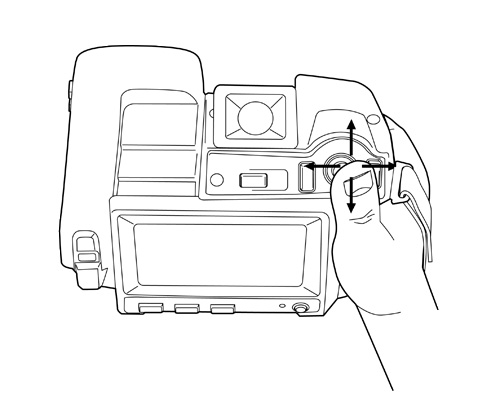

Navigating using the joystick

You navigate the menu system by using the joystick and the back button:

  • To display the menu system, push the joystick.

  • To navigate in menus, submenus, and dialog boxes, and to change values in dialog boxes, move the joystick up/down or left/right.

  • To confirm changes and settings in menus and dialog boxes, push the joystick.

  • To leave dialog boxes and to go back in the menu system, push the back button .

1 This item is dependent on the camera model.
2 The laser pointer may not be enabled in all markets.
